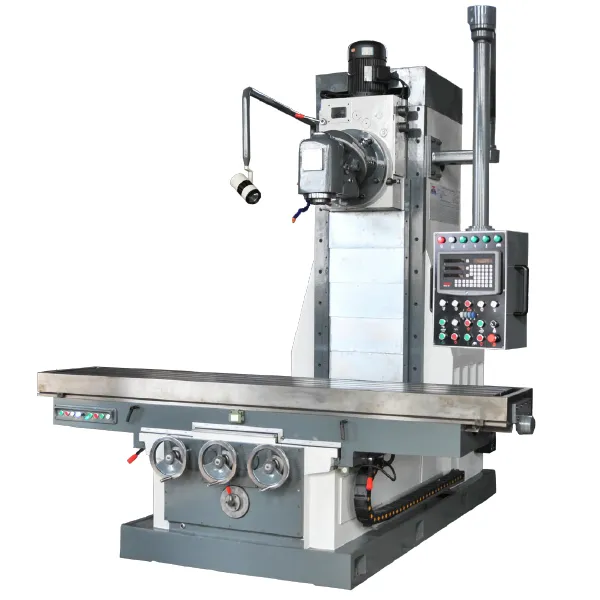

The UB25 is an ultra-heavy-duty bed type milling machine engineered for high-precision machining, heavy metal removal, and complex component production in industrial manufacturing facilities. Featuring a robust 2800 x 500mm worktable with an impressive 5000kg load capacity, generous travels (2500 mm X, 1020mm Y, 670mm Z), an ISO50 vertical spindle taper, a 12-speed spindle speed range from 36 to 1340 r/min, precision feed systems (22 – 560mm/min for X and Y; 11 – 280mm/min for Z), a 1650mm/min rapid feed speed, a dual-power 7.5 / 11kW main motor, and a solid machine weight of 12,000kg, it delivers exceptional structural rigidity, torque, and versatility for demanding fabrication environments.
| Specifications | Units | Details |
| Model / Machine Type | — | UB25 / Bed Type Milling Machine |
| Table Size (W x L) | mm | 2800 x 500 |
| Travels (X, Y, Z) | mm | 2500 x 1020 x 670 |
| Vertical Spindle to Column Distance | mm | 900 |
| Spindle Taper | — | ISO50 |
| Feed Speed (X, Y) | mm/min | 22 – 560 |
| Feed Speed (Z) | mm/min | 11 – 280 |
| Rapid Feed Speed (X, Y) | mm/min | 1650 |
| Spindle Speed Range (Steps) | r/min | 36 – 1340 (12 Gears) |
| Spindle Motor Power | kW | 7.5 / 11 |
| Max. Table Load Capacity | kg | 5000 |
| Machine Dimensions (L x W x H) | mm | 3300 x 3000 x 3000 |
| Machine Weight | kg | 12000 |
