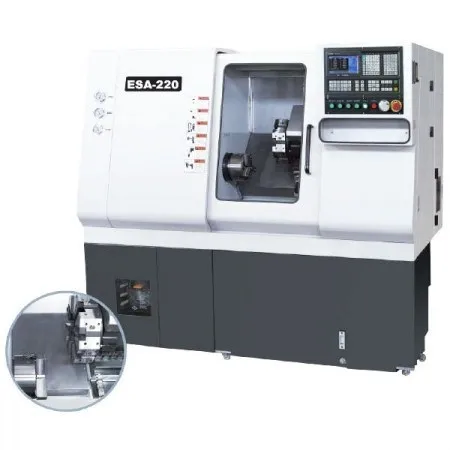

The ESA-220 (SL 10 with 500/750mm between centers style) is a high-performance production slant bed CNC lathe engineered for rapid cycle times, superior rigidity, and precision manufacturing. Part of the dependable ES-Series featuring rigid cast iron box-type frames, this machine combines a 360mm swing over bed, a 220mm turning diameter, a 330mm turning length, a powerful 5.5kW main motor with speeds up to 4,500rpm, an 8-station automatic tool turret, and an integrated hydraulic 3-jaw chuck, delivering exceptional productivity, reliability, and accuracy for demanding industrial machining operations.
| Specifications | Units | Details |
| Series / Model | — | ES-Series / ESA-220 (SL 10 style production lathe) |
| Machine Type | — | Production Slant Bed CNC Lathe |
| Swing Over Bed | mm | 360 (Series range: 360 or 460mm) |
| Swing Over Saddle | mm | 230 |
| Turning Diameter | mm | 220 (Series range: 230 or 380 mm) |
| Turning Length | mm | 330 (Series range: 310 or 580mm) |
| Spindle Bore (Thru Hydraulic Chuck) | mm | 52 |
| Spindle Speed Range | rpm | 45 – 4,500 |
| Main Motor Power | kW | 5.5 |
| Rapid Feed Speed (X, Z) | m/min | 15, 12 |
| Tailstock Taper | — | MT4 (with Programmable Hydraulic Tailstock) |
| Tool Turret Capacity | — | 8-Station Auto Tool Turret |
| Standard Equipment | — | Rigid cast iron box-type frame, hydraulic 3-jaw chuck, programmable hydraulic tailstock, and high-pressure coolant system |
