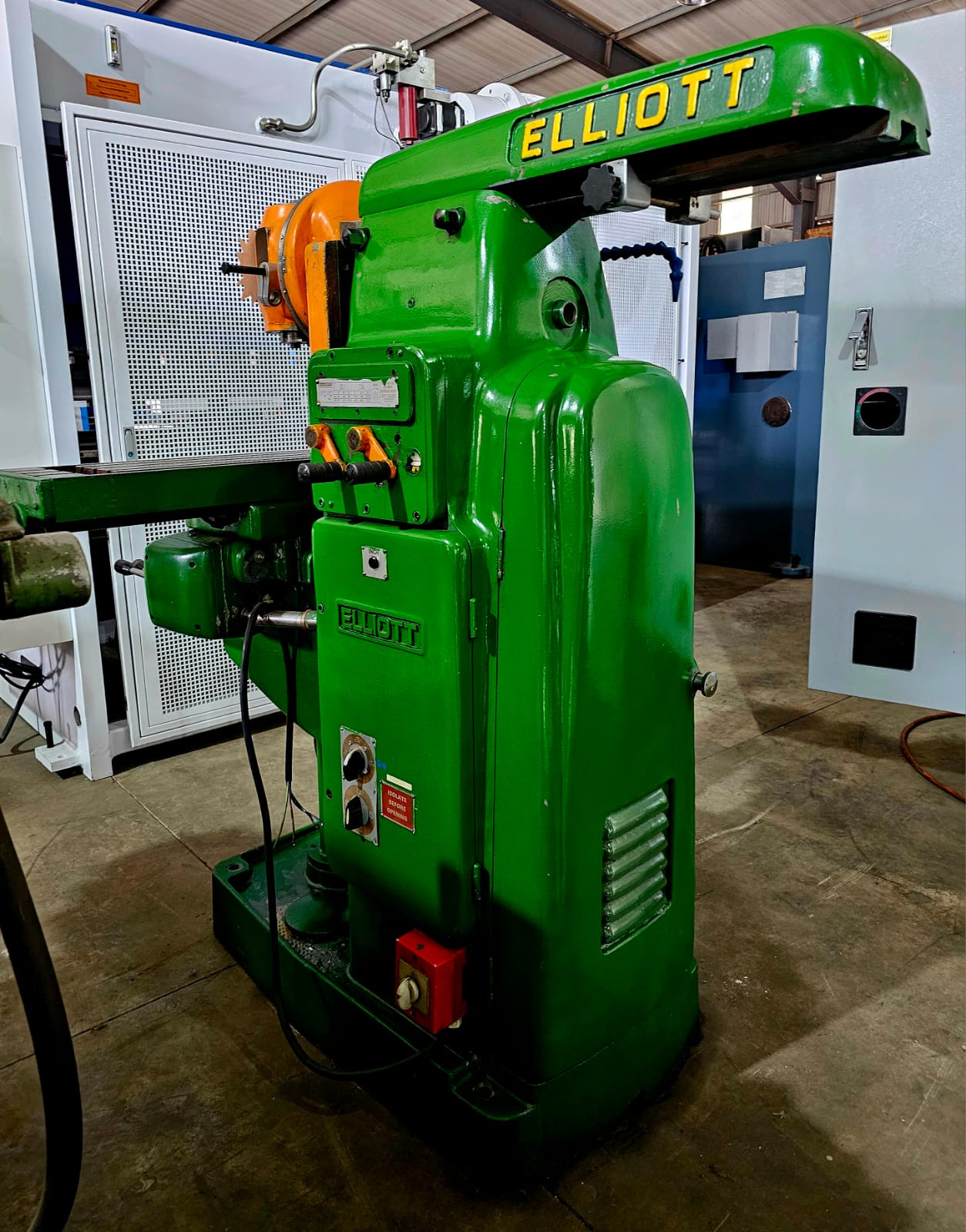

Elliot No. 2 Universal Milling Machine, Multi-Gear Speed Selector Dial
| Specification Category | Technical Parameters & Dimensions |
|---|---|
| Table Surface Dimensions | 1220 mm × 250 mm to 1220 mm × 290 mm (approx. 48″ × 11.5″) |
| Table Angular Swivel | 45° Left / 45° Right (for helix and gear cutting) |
| Longitudinal Travel (X-Axis) | 710 mm (approx. 28″) |
| Cross Travel (Y-Axis) | 230 mm to 250 mm (approx. 9″ to 10″) |
| Vertical Knee Travel (Z-Axis) | 400 mm to 420 mm (approx. 16″) |
| Main Spindle Taper | ISO 40 / 40 INT (Standard heavy-duty interface) |
| Horizontal Spindle Speeds | 30 to 1050 RPM (12 mechanical gear steps) |
| Spindle Motor Power | 2.2 kW to 3.0 kW (Approx. 3 HP to 4 HP) |
| Axis Feed System | Mechanical power feed driven on all three axes (X, Y, Z) |
| Rapid Traverse | Mechanical rapid-override functionality included |
| Lubrication System | Integrated manual one-shot lubrication pump |
| Machine Net Weight | Approximately 1,200 kg to 1,450 kg (approx. 2,640 to 3,200 lbs) |
| Floor Footprint Required | Approx. 1600 mm (L) × 2050 mm (W) × 1750 mm (H) |
