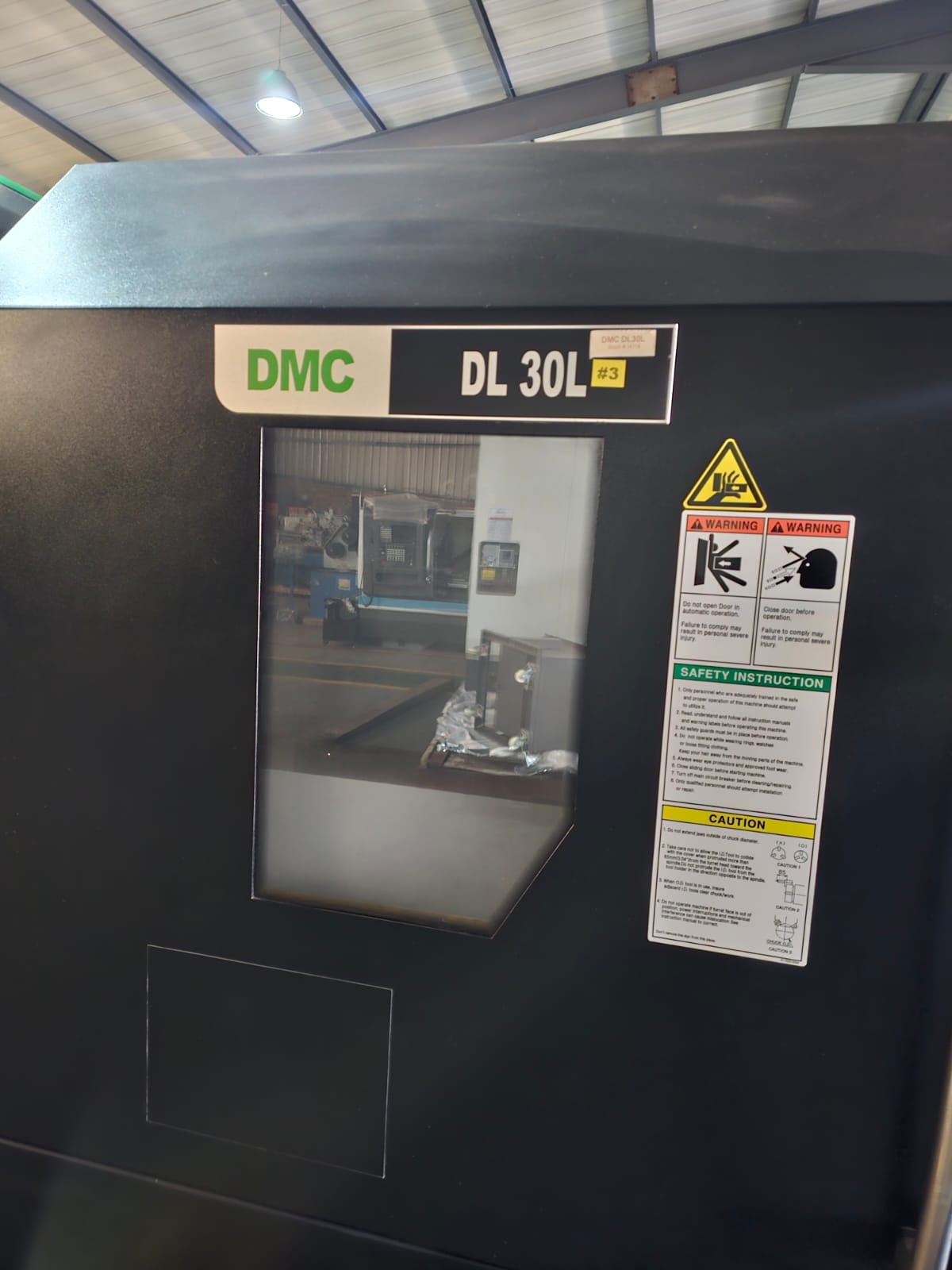

The pre-owned DMC DL30L CNC Lathe is a robust heavy-duty turning machine equipped with a Fanuc Oi-TF control. Featuring a 12-inch chuck, a 25 hp main motor, a generous 83.86-inch center distance, and an integrated tailstock, it is engineered for precise, high-capacity industrial machining applications.
| Specification | Inch | Metric |
| CNC Control |
Fanuc Oi-TF |
Fanuc Oi-TF |
| Number of Axes |
2 |
2 |
| Swing |
24.02 in |
610.11 mm |
| Turning Diameter |
15.75 in |
680.00 mm |
| Center Distance |
83.86 in |
2,130.04 mm |
| Chuck Size |
12 in |
304.80 mm |
| Bar Capacity |
3.54 in |
89.92 mm |
| X Axis Travel |
9.06 in |
230.12 mm |
| Z Axis Travel |
83.86 in |
2,130.04 mm |
| Rapid Traverse (X/Z) |
787 / 708 ipm |
787 / 708 ipm |
| Spindle Nose |
A2-8 |
A2-8 |
| Spindle Speed |
3,000 rpm |
3,000 rpm |
| Main Motor |
25 hp |
25 hp |
| Live Tooling |
No |
No |
| Tailstock |
Yes |
Yes |
| Y Axis |
No |
No |
| Sub Spindle |
No |
No |
| Turret Capacity |
12 stations |
12 stations |
| Machine Dimensions (L x F-B x H) |
210″ x 74″ x 86″ |
210″ x 74″ x 86″ |
| Machine Weight |
19,000 lb |
8,618.25 kg |
