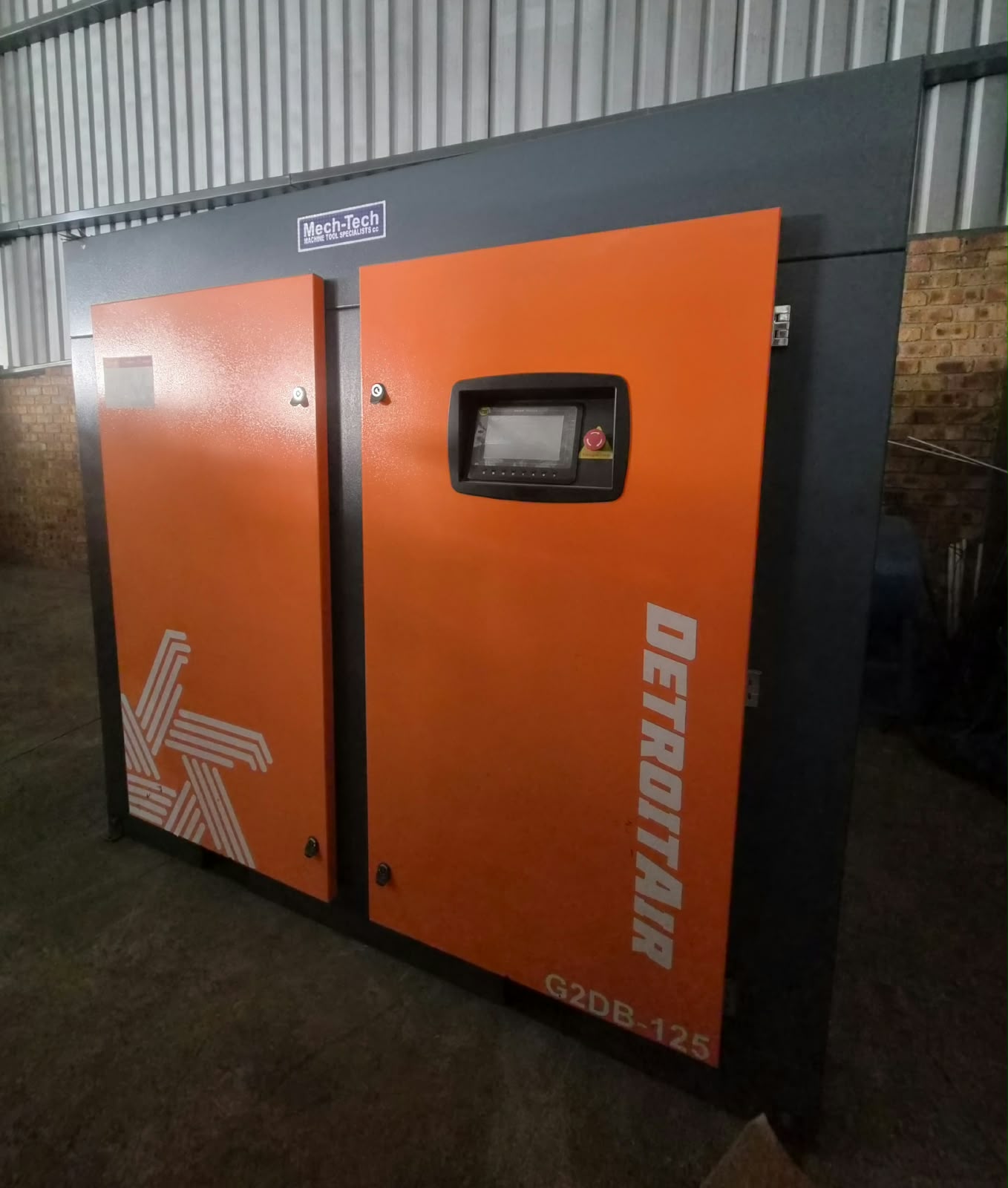

The Detroit Air G2DB-125 is a heavy-duty, high-performance rotary screw air compressor engineered for demanding industrial environments. Delivering exceptional energy efficiency and reliability, it features an intelligent PLC control system with IoT-enabled remote monitoring capabilities, precision heavy-duty air-ends with low rotor speeds, and an advanced acoustic cabinet design for superior noise and vibration reduction.
| Feature / Category | Specification Details |
| Model SKU | G2DB-125 / G2DB-125VSD |
| Motor Power | 125 HP (90 kW) |
| Working Pressure | 10 Bar (1.0 MPa) |
| Air Delivery Output | 498 CFM / 14,100 LPM |
| Drive System | Directly Coupled / Variable Speed Drive (VSD options available) |
| Electrical Supply | 380V / 50Hz (3-Phase) |

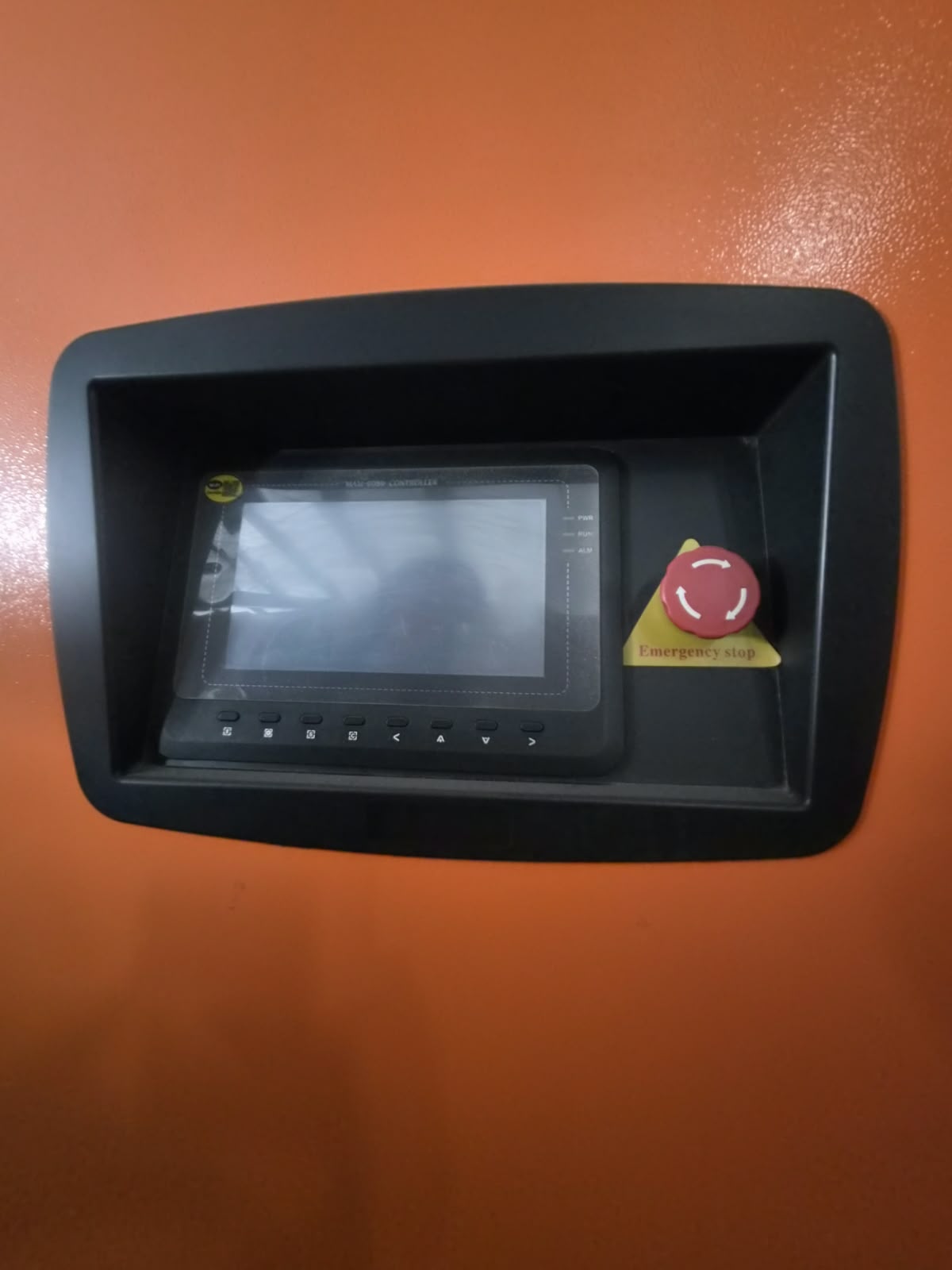

| Control System | MAN Detroit Intelligent PLC (IoT Enabled for Remote Monitoring) |
| Oil Capacity | 52 Liters |
| Noise Level | Approx. 78 dB(A) |
| Machine Dimensions (L x W x H) | 210 cm x 151 cm x 180 cm |
| Net Weight | Approx. 2,480 kg |
