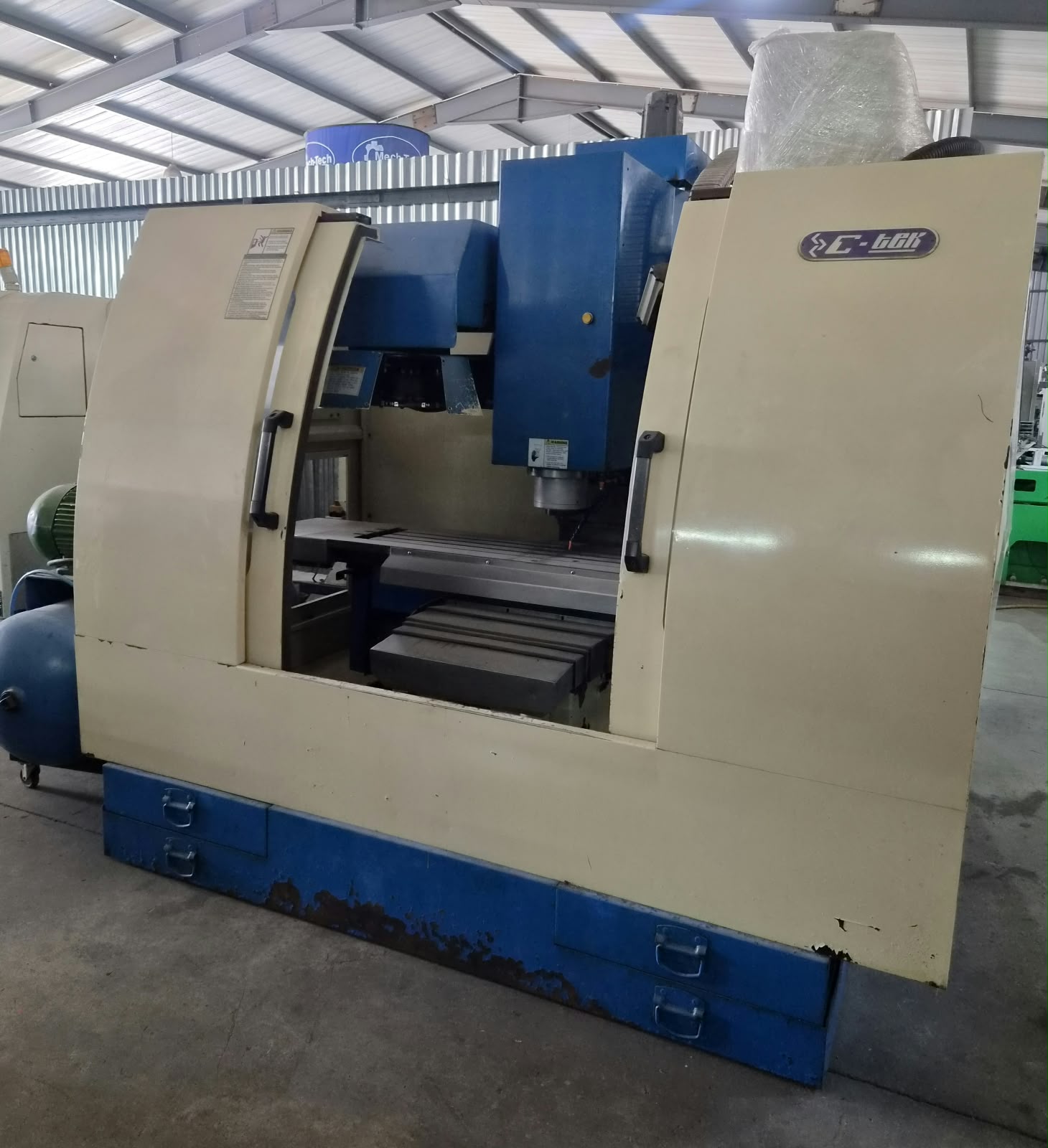

The C-TEK CNC Milling Machine is engineered for high-precision toolroom applications, mold-making, and small-to-medium batch production. Built with a high-rigidity Meehanite cast iron frame, hardened and precision-ground slideways coated with Turcite-B, and advanced graphical CNC controls, it delivers exceptional stability, wear resistance, and repeatable accuracy for complex profiling and contouring tasks.
| Feature / Category | Specification Details |
| Table Surface Area | 810 mm x 2,200 mm (Model dependent, e.g., KM-2085) |
| T-Slots (Width x Number) | 18 mm x 5T |
| Table Load Capacity | 2,200 kg |
| Axis Travels (X / Y / Z) | X: 2,000 mm / Y: 850 mm / Z: 710 mm |
| Spindle Taper | BT40 or CAT40 |
| Spindle Speed | 6,000 RPM (up to 8,000 RPM on select models) |
| Spindle Motor Power | 20 HP (AC Servo/Spindle configuration) |
| Rapid Traverse Rate (X, Y, Z) | 15,000 mm/min |
| Feed System | High-precision double-nut ballscrews with automatic lubrication |
