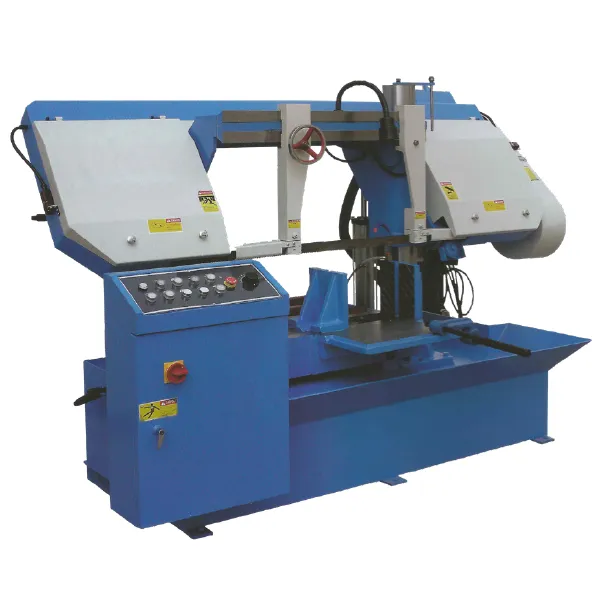

The BCA-500 is a heavy-duty, fully automatic (NC-controlled) column-type bandsaw engineered for high-volume production cutting and rigorous industrial applications. Featuring a solid column design for superior cutting accuracy, an electronically controlled variable blade speed inverter (30 – 65m/min), a hydraulic shuttle vice feed system with bundle cutting capabilities and a top clamping vice, a powerful 4kW drive motor, a precision blade size of 41 x 1.25 x 5450mm, and versatile cutting capacities up to 500mm round and 500 x 500mm rectangular/square, it delivers exceptional productivity, automation, and precision for heavy metal fabrication.
| Specifications | Units | Details |
| Model / Machine Type | — | BCA-500 / BA-Series Automatic Column Type Bandsaw |
| Operation Type | — | Full Auto (NC Controlled) with Hydraulic Shuttle Vice Feed |
| Cutting Capacity (Round) | mm | 500 |
| Cutting Capacity (Rectangular / Square) | mm | 500 x 500 |
| Blade Speed Range | m/min | 30 – 65 |
| Blade Speed Control | — | Variable (Inverter) |
| Vice Clamping | — | Hydraulic |
| Blade Size (Width x Thickness x Length) | mm | 41 x 1.25 x 5450 |
| Motor Power | kW | 4 |
| Machine Dimensions (L x W x H) | mm | 2,650 x 1,100 x 2,000 |
