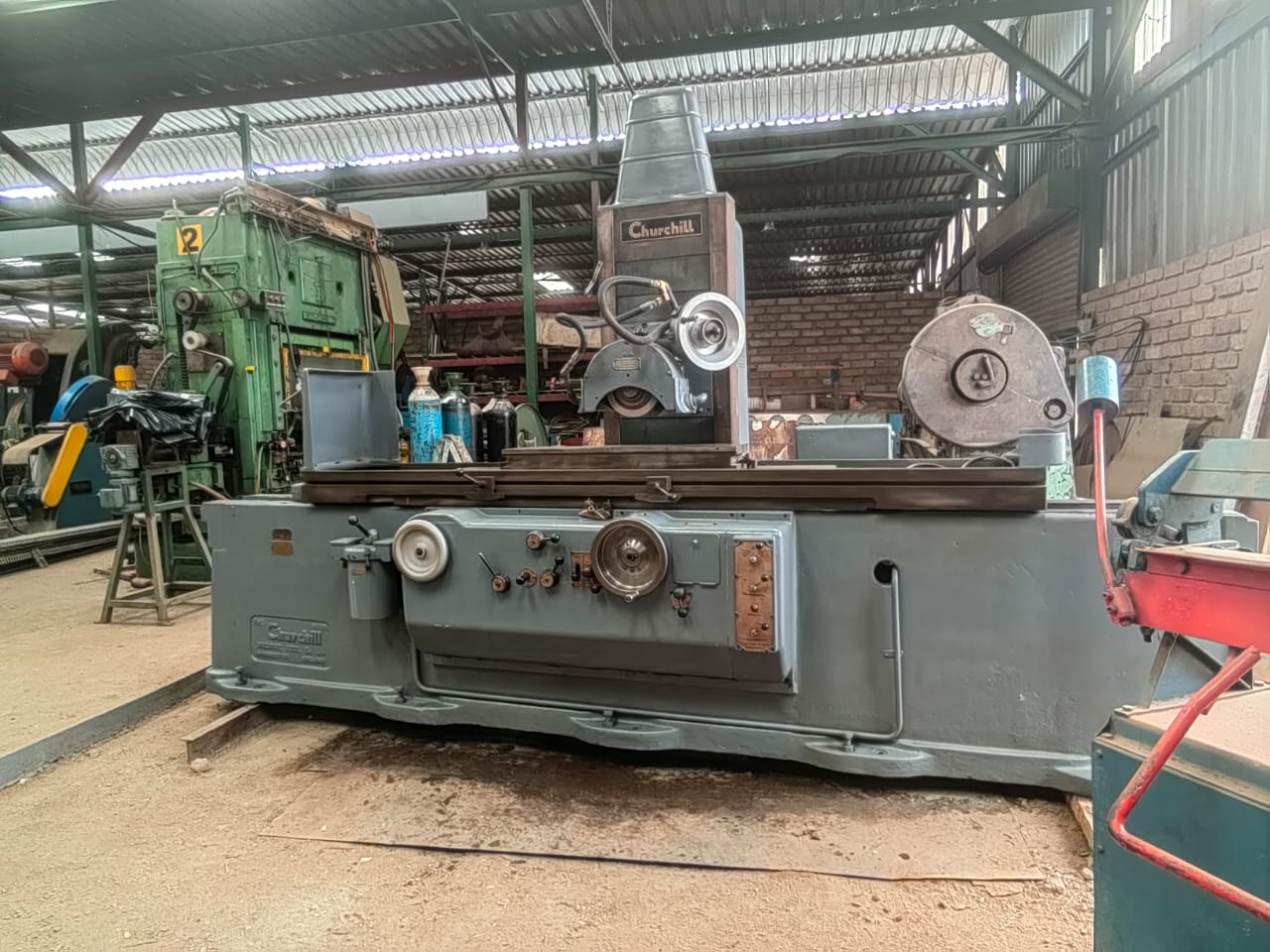

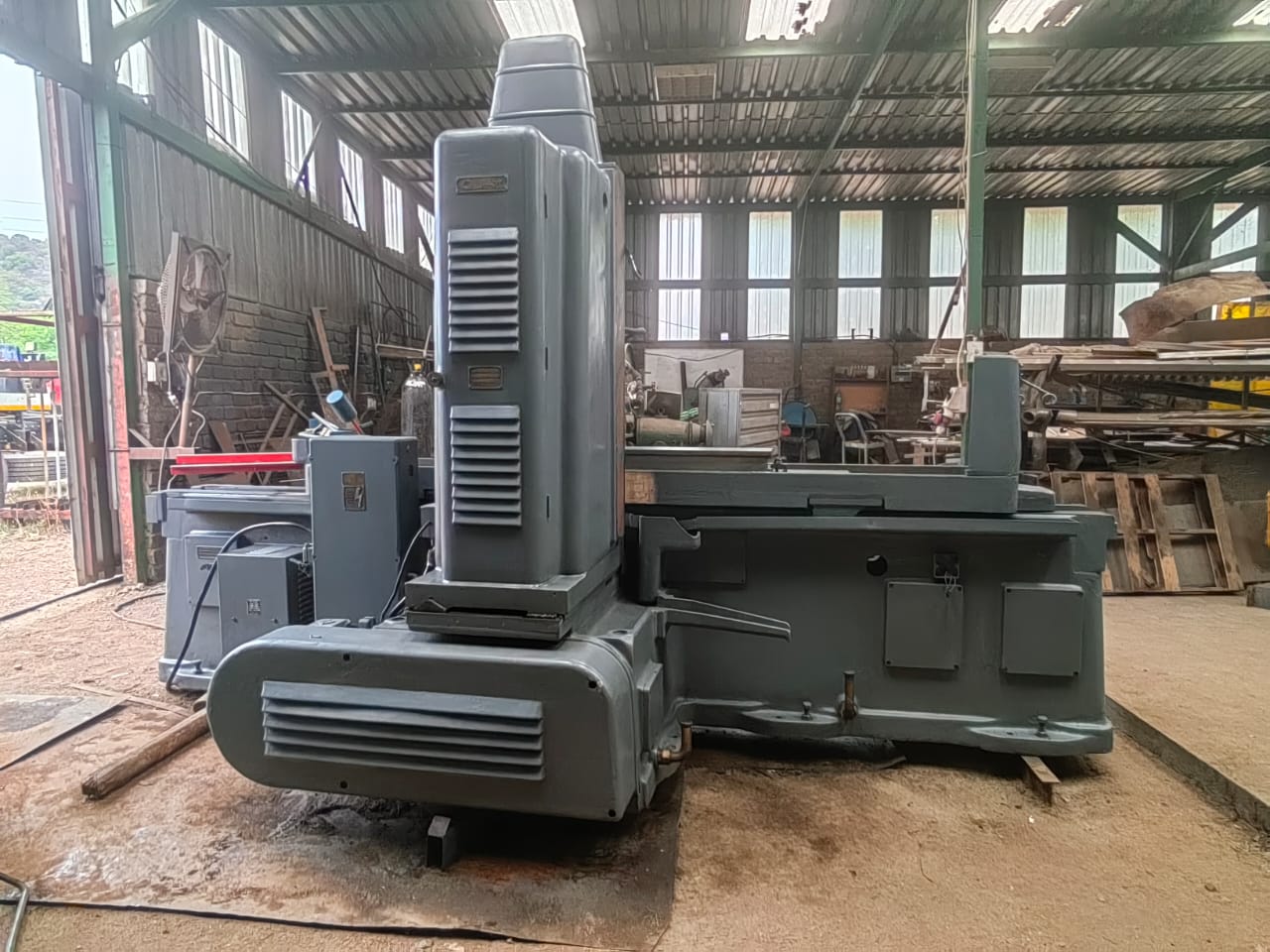

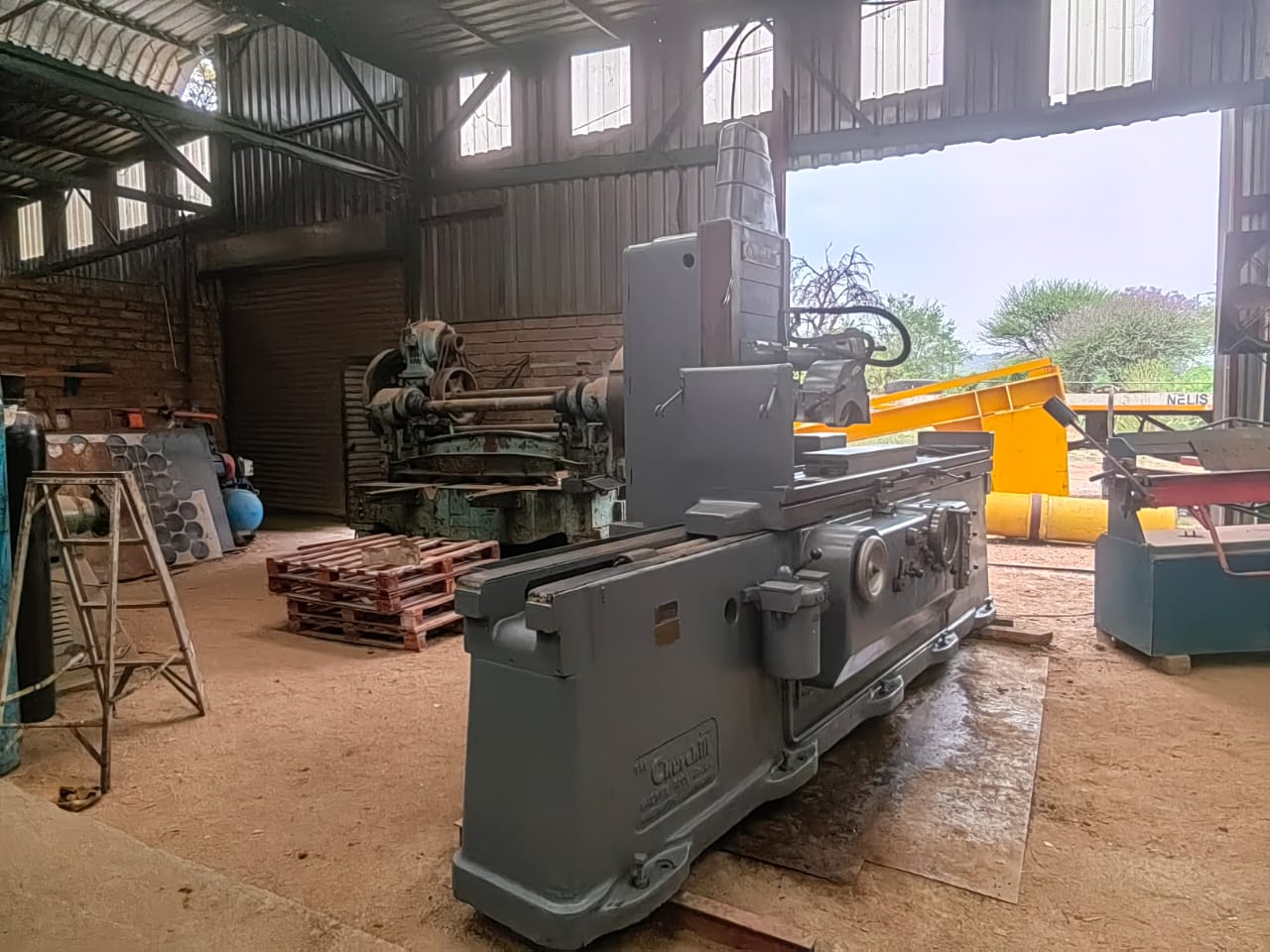

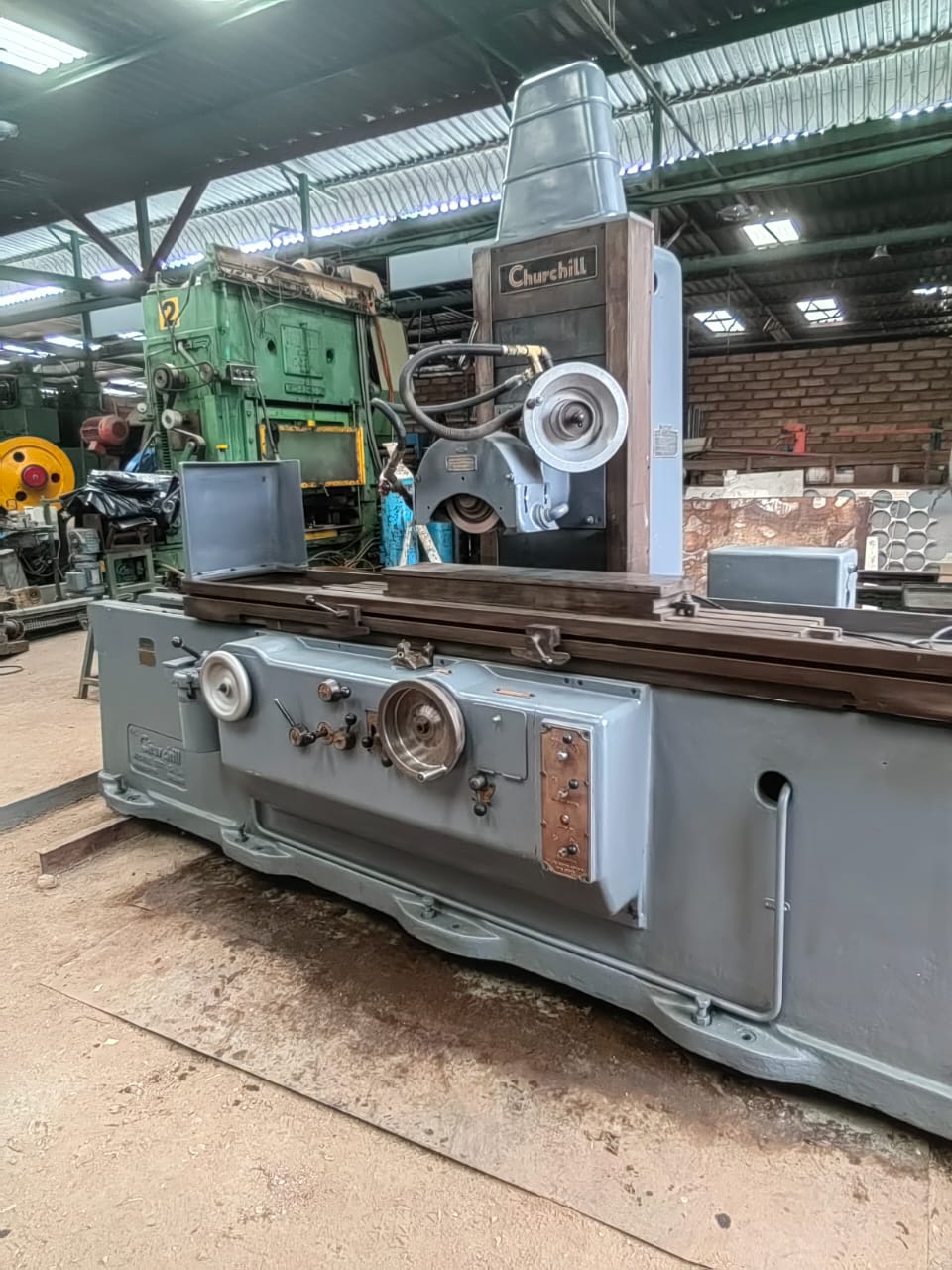

Churchill 2000mm Surface Grinder Price; R110,000 excl VAT

For pricing please contact our sales team

WhatsApp_Image_2023-10-17_at_08.02.42.jpeg Parameter Specification

Grinding Length (Max) 72" – 84" (1830 mm – 2135 mm)

Grinding Width (Max) 12" – 24" (305 mm – 610 mm) (Model dependent)

Max Height (Under Wheel) 18" – 30" (450 mm – 760 mm)

Table Surface Area ~2000 mm x 450 mm

Grinding Wheel Size Ø 14" – 20" (350 mm – 500 mm)

Wheel Width 2" – 4" (50 mm – 100 mm)

Spindle Motor 10 HP – 20 HP (7.5 kW – 15 kW)

Table Drive Hydraulic Reciprocating

Table Speed Variable (up to 100 ft/min or 30 m/min)

Cross Feed Automatic / Hydraulic Intermittent

Spindle Type Horizontal (Standard)

Approx. Weight 6 – 8 Tons




Parameter Model 91 ML Model 92 ML Model 93 ML

Magnetic Table Diameter 36" (915 mm) 48" (1220 mm) 60" (1525 mm)

Segmented Wheel Diameter 22" (560 mm) 28" (710 mm) 34" (865 mm)

Max Grinding Height 11" (280 mm) 18" – 22" (450 – 560 mm) 18" (450 mm)

Spindle Motor Power 40 HP (30 kW) 50 HP (37 kW) 60 HP (45 kW)

Spindle Speed ~700 RPM ~550 RPM ~450 RPM

Table Speed 8 & 24 RPM 6 & 18 RPM 5.5 & 16 RPM

Number of Segments 10 or 12 Segments 12 or 14 Segments 14 or 16 Segments

Approx. Weight 7.5 Tons
