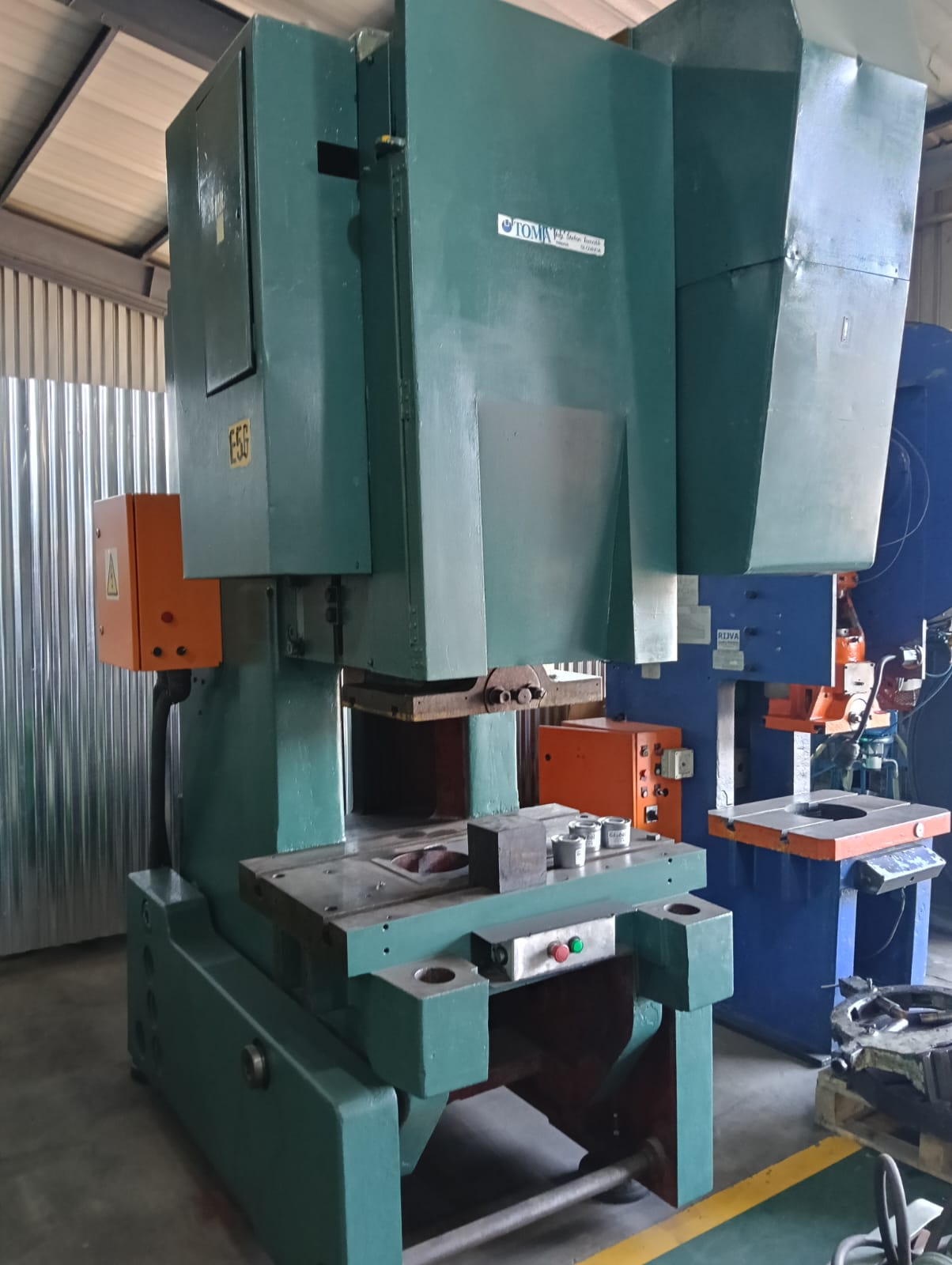

Details

pressure

100 t

throat

 mm

stroke

 mm

---------------------------------------------



PRESS DESIGN



.. frame design: C-frame, single sided



.. number of con-rods / cylinders

1

.. number of slide actions

1

PRESS FORCES



.. total force (nominal)

100 to

PRESS TABLE



.. table surface (left-right)

1000 mm

.. table surface (front-back)

640 mm

.. thickness of bolster plate

90 mm

SLIDE



.. table surface (left-right)

560 mm

.. table surface (front-back)

430 mm

SLIDE (MECHAN. PRESS)



.. slide adjustment

90 mm

.. stroke min.

10 mm

.. stroke max.

125 mm

.. stroke rate (min.)

75 /min

.. stroke rate (max.)

150 /min

TOOL ASSEMBLY DIMENSIONS



.. shut height (stroke down, adjustment up), TDC

425 mm

.. distance table - slide max.

550 mm

ELECTRICAL SPECIFICATIONS



.. total power consumption

12 kW

.. mains voltage

380 V

.. mains frequency

50 Hz

DIMENSIONS / WEIGHTS



.. space requirements length

2200 mm

.. space requirements width

1750 mm

.. total height

3000 mm

.. total weight approx.

10100 kg

ATTACHMENTS (PRESSES)



.. light barrier: yes



.. 2-hand engagement: yes
