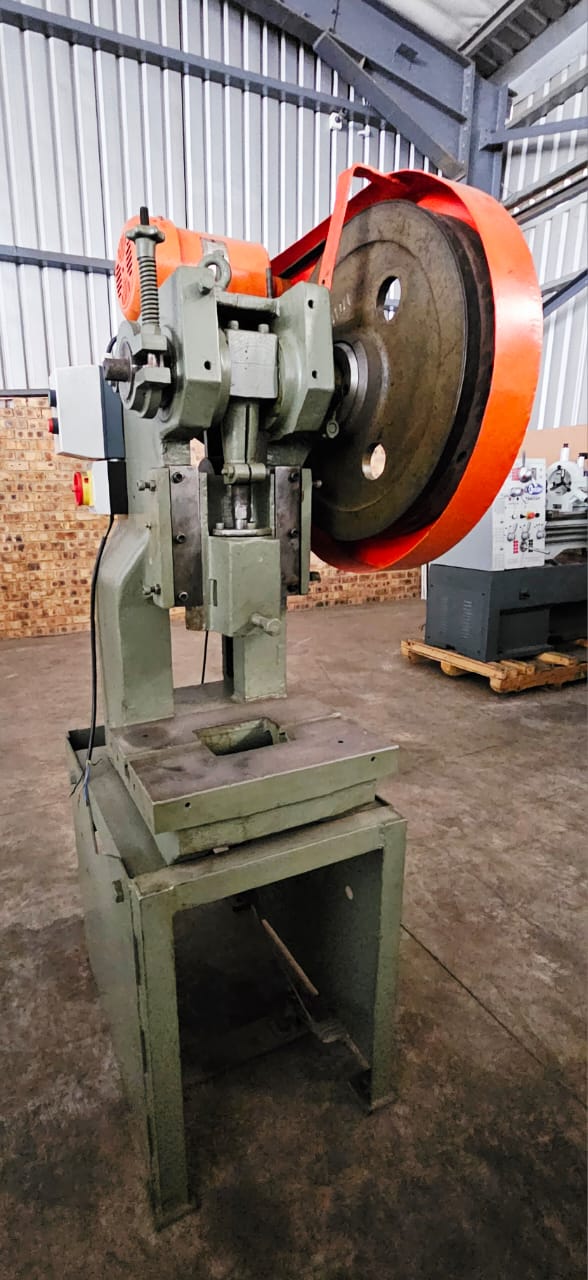

10 TON ECCENTRIC PRESS

For pricing please contact our sales team

Parameter Specification

Model J23-10 / J23-10D

Nominal Force (Capacity) 100 kN (10 Tons)

Stroke Length Adjustable (Typically 0 – 50 mm)

Strokes Per Minute (SPM) ~140 – 145 spm

Shut Height (Die Height) 130 mm – 180 mm (varies by model)

Ram Adjustment 35 mm

Throat Depth 130 mm (Standard)

Bolster / Table Area 360 mm x 240 mm

Bolster Thickness 35 mm – 50 mm

Table Hole Diameter Ø 100 mm – 120 mm

Ram Hole (Shank Size) Ø 30 mm x 50 mm Depth

Motor Power 1.1 kW

Voltage 380V (3-Phase)

Inclinable Angle Max 30° (Optional on some models)

Approx. Weight 350 kg – 500 kg

Dimensions (Approx.) 600 x 800 x 1500 mm
