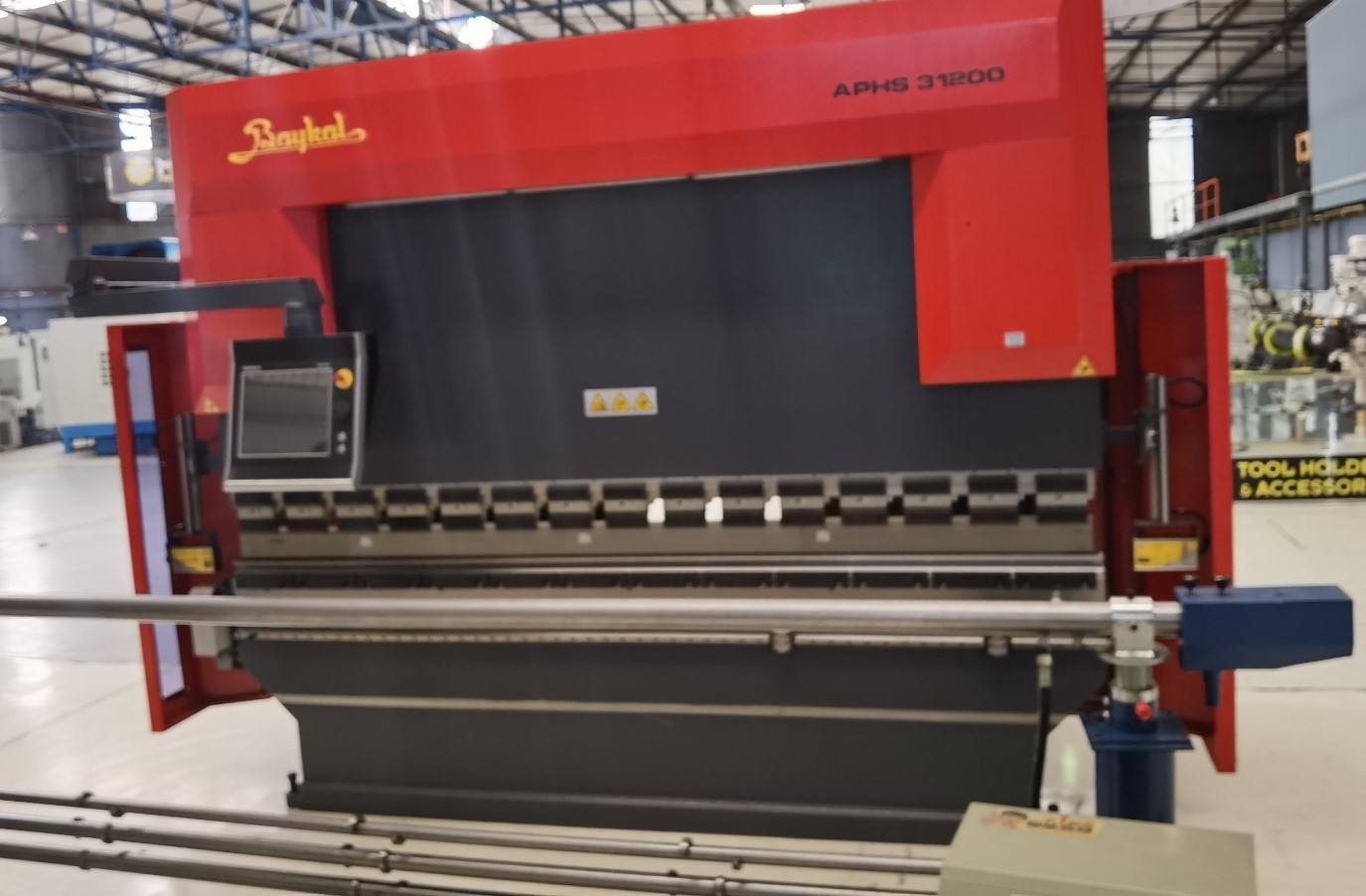

BAYKAL APHS 200 TON X 3100 4 – AXIS CNC PRESSBRAKE WITH CNC CROWNING, AN AKAS LASER GUARD

Specifications

Nominal force                                                                                     200 Ton

Length of Table                                                                                   3100mm

Distance between uprights                                                                 2550mm

Throat gap                                                                                          410mm

Stroke                                                                                                  260mm

Approach speed                                                                                  150mm/s

Working speed                                                                                    8mm/s

Return speed                                                                                      130mm/s

Daylight                                                                                               560mm

Control system                                                                                    Delem DA-66t

Motor Power                                                                                       18.5Kw

Weight                                                                                                 10 Tons

NEW Machies, Under press- brakes

BAYKAL FULL DELEM FOUR AXIS CNC Control INCLUDING CROWNING

3100mm x 200 Ton
