R 120 000.00 excl.

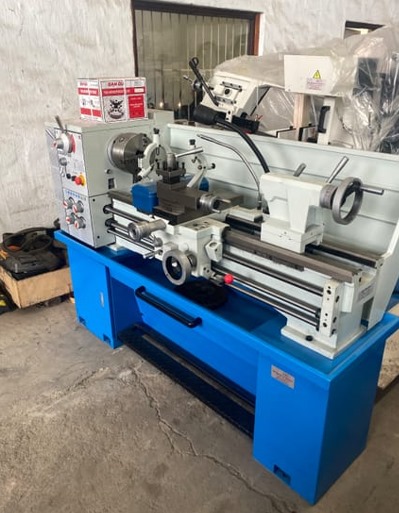

Specifications 6240×1000mm (40")
Swing over bed Φ400mm(16")
Swing over cross slide Φ250mm(10")
Swing in gap(D×W) 520mm×100mm
Height of center 200mm(8")
Distance between centers 1015mm(40")
Width of bed 218mm(9")
Max. section of cutting tool 20mm×20mm(3/4"×3/4")
Total travel of cross slide 230mm(10")
Total travel of top slide 120mm(5")
Spindle bore 52mm(2")
Spindle nose D1-5
Spindle Morse taper in nose in sleeve MT6/MT4
Spindle speeds number 2×9 (18 steps)
Spindle speeds range 65-1800rpm
Leadscrew diameter&thread 24mm×4 T.P.I or pitch 6mm
Threads imperial pitches 4-60 T.P.I
Threads metric pitches 0.4-7mm
Longitudinal feeds(imperial/metric) 0.0527-1.2912mm
Cross feeds(imperial/metric) 0.011-0.276mm
Total travel of tailstock quill 110mm(4")
Tails stock quill Φ52mm(2")
Taper tailstock quill MT4
Main motor 3 Phase/380v
Spindle drive motor 2HP
Coolant pump motor 4/75HP(40W)
Split pkg: 1940mm×890mm×1045mm
INCLUDES
• Work Lamp
• 3 Jaw chuck
• 4 Jaw chuck
• Fixed and traveling steadies
• Splash guard
• Oil gun
• Service tools
• Coolant system
