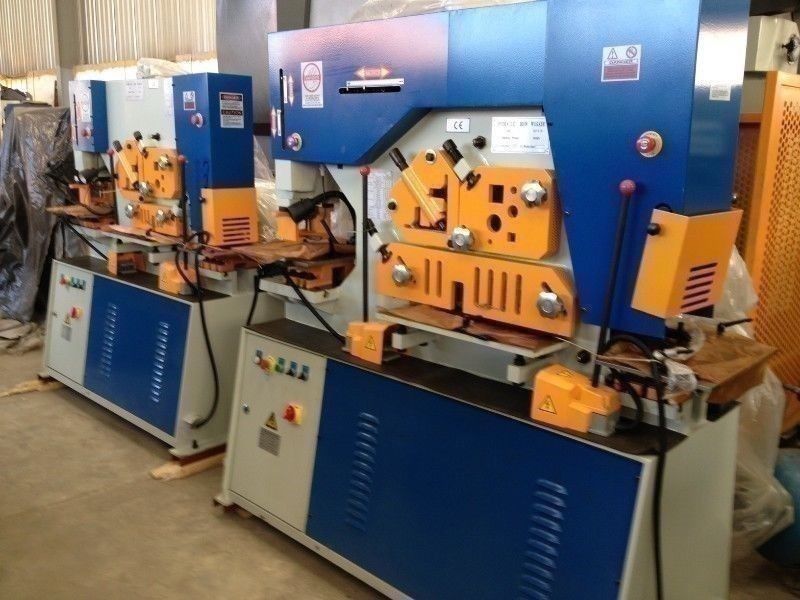

Hydracrop Universal Iron Worker
Model: HIW 90.
Capacity: 90Ton
Type: Double Cylinder, Hydraulic
Angle Iron: 140mm x 140mm x 12mm
Punching: 28mm Diameter thru 20mm Thickness
|
Technical Data
|
|
Model
|
Q35Y-16
( IW-60 )
|
Q35Y-20
( IW-90)
|
Q35Y-25
(IW-110)
|
Q35Y-30
( IW-140)
|
|
Working pressure(KN)
|
600
|
900
|
1100
|
1400
|
|
Max. cutting thickness(mm)
|
16
|
20
|
25
|
26
|
|
Max. cutting length(mm)
|
400
|
480
|
600
|
600
|
|
Tensile strength of sheet metal
(N/mm²)
|
≤450
|
≤450
|
≤450
|
≤450
|
|
Shear angle(deg)
|
7
|
8
|
8
|
8
|
|
Stroke of ram(mm)
|
80
|
80
|
80
|
80
|
|
(stroke times)(min)
|
8
|
8
|
8
|
8
|
|
Depth of throat(mm)
|
300
|
355
|
400
|
600
|
|
Max .Capacities(mm)
|
25×16
|
30×20
|
35×25
|
38×28
|
|
Main motor(KW)
|
4
|
5.5
|
7.5
|
11
|
|
Length of machine tool(mm)
|
1650
|
1950
|
2355
|
2680
|
|
Width of machine tool(mm)
|
800
|
900
|
980
|
1060
|
|
Height of machine tool(mm)
|
1780
|
1930
|
2100
|
2350
|
|
Weight of machine tool(kg)
|
1900
|
2600
|
4800
|
6800
|
|
PUNCHING METRIC(mm)
|
|
Max. Capacities
|
25×16
|
30×20
|
35×25
|
38×26
|
|
Max. Stroke Length
|
80
|
80
|
80
|
80
|
|
Throat Depth Standard
|
305
|
355
|
400
|
600
|
|
Working Height
|
1030
|
1084
|
1142
|
1209
|
|
SHEARING
|
|
Flat Bar
|
250×16
|
330×20
|
300×25
|
355×30
|
|
Alternative
|
400×8
|
480×10
|
600×16
|
600×20
|
|
Blade Length
|
410
|
485
|
620
|
610
|
|
Working Height
|
890
|
894
|
891
|
897
|
|
ANGEL CUTTING
|
|
At 90°cut
|
125x125×12
|
140x140×12
|
160×160x14
|
180x180×16
|
|
At 45°Mitre
|
70×10
|
70×10
|
70×10
|
70×10
|
|
Working Height
|
1130
|
1139
|
1200
|
1220
|
|
SECTION CUTTING
|
|
Round / Square Bar
|
45
|
50
|
60
|
65
|
|
Channel / I bar
|
130×65
|
160×88
|
200x100
|
280×122
|
|
T bar
|
90×12
|
90×12
|
90×12
|
90×12
|
|
NOTCHING
|
|
Material Thickness
|
10
|
13
|
14
|
16
|
|
Width
|
57
|
57
|
57
|
57
|
|
Depth: Vee -Rect.
|
60-90
|
60-90
|
60-90
|
60-90
|
|
Working Height
|
890
|
883
|
886
|
898
|
