SL 10, 500/750 BETWEEN CENTERS -SLANT BED

Contact Sales
Get a quote

For pricing please contact our sales team

ES-Series:

  • Production slant bed CNC lathes
  • High ridgedity cast iron frames and fast accurate
  • Cycle times make the ESA and ESB-series CNC lathes ideal production partners
  • Reliablity + production speed = higher profits
ESA-Series
  • 360 or 460 mm swing
  • 230 or 380 mm turning diameter
  • 310 or 580 mm turning length
Standard on ESA and ESB series:
  • 8/12 station auto tool turret
  • Ridged cast iron box type frame
  • Hydraulic 3-jaw chuck
  • Programable hydraulic tailstock
  • High pressure coolant system
Model

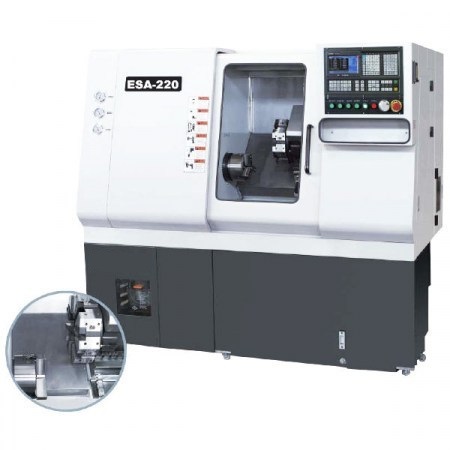

ESA-220
Swing over bed

360 mm
Swing over saddle

230 mm
Turning diameter

220 mm
Turning length

330 mm
Rapid feeds (X, Z)

15, 12 mm/min
Spindle bore (Thru HYD chuck)

52 mm
Spindle Speed

45-4500 rpm
Tailstock taper

MT4
Main motor

5.5 kw
Tool turret, no of tools

8 tools
